插件不加载？Dify Plugin Daemon高可用部署避坑指南
推荐语
插件守护进程崩溃导致业务中断？掌握两种高可用部署方案，确保Dify插件服务永不掉线。
核心内容：
1. 插件守护进程故障的三大根源：网络层、存储层、应用层
2. 主从热备与Kubernetes集群两种高可用部署方案详解
3. 配套的错误预防机制与监控体系构建指南
杨芳贤
53AI创始人/腾讯云(TVP)最具价值专家
当用户在dify平台调用插件时，若出现PluginDaemonInternalServerError: no available node, plugin not found错误，往往意味着整个插件生态的核心——Plugin Daemon服务出现了单点故障。作为Dify生态中连接插件与核心服务的"神经中枢"，Plugin Daemon负责插件的下载、验证、执行与生命周期管理。在企业级部署中，其稳定性直接决定了AI应用的可用性：某金融科技公司曾因插件守护进程宕机，导致智能客服系统无法调用支付查询插件，造成3小时业务中断，直接损失超百万。
本文将从故障根源分析出发，提供主从热备与Kubernetes集群两种高可用部署方案，配套错误预防机制与监控体系，帮助运维团队实现Plugin Daemon的零故障运行。

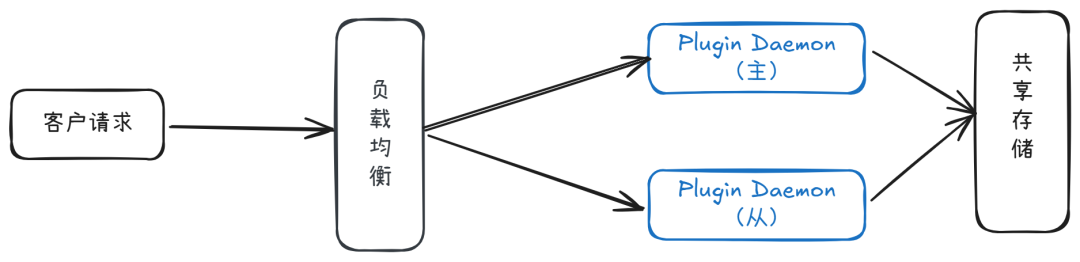

拓扑图：
核心配置：
# 主节点配置
ROLE=master
SYNC_TARGET=http://slave-node:5002 # 从节点同步地址
# 从节点配置
ROLE=slave
SYNC_SOURCE=http://master-node:5002 # 主节点数据来源
# 主节点启动同步服务
inotifywait -m /app/storage/cwd -e create,delete | while read -r directory events filename; do
rsync -avz /app/storage/cwd/ slave-node:/app/storage/cwd/ --delete
done
拓扑图：
核心优势：
# 创建宿主机目录并设置权限
mkdir -p /data/dify/plugin-daemon
chown -R 1000:1000 /data/dify/plugin-daemon # 匹配容器内非root用户UID/GID
# 解决超时问题
PYTHON_ENV_INIT_TIMEOUT=640 # 延长依赖安装超时至10分钟
PLUGIN_MAX_EXECUTION_TIMEOUT=2400
# 加速国内下载
PIP_MIRROR_URL=https://pypi.tuna.tsinghua.edu.cn/simple
version: '3.8'
services:
plugin_daemon_master:
image: langgenius/dify-plugin-daemon:0.1.3-local
environment:
- ROLE=master
- SERVER_PORT=5002
- STORAGE_PATH=/app/storage/cwd
volumes:
- /data/dify/plugin-daemon:/app/storage/cwd
healthcheck:
test: ["CMD", "curl", "-f", "http://localhost:5002/health"]
interval: 10s
retries: 3
plugin_daemon_slave:
image: langgenius/dify-plugin-daemon:0.1.3-local
environment:
- ROLE=slave
- SYNC_SOURCE=http://plugin_daemon_master:5002
volumes:
- /data/dify/plugin-daemon:/app/storage/cwd
listen plugin_daemon
bind *:5002
mode http
balance roundrobin
server master 172.18.0.2:5002 check inter 2s fall 2 rise 1
server slave 172.18.0.3:5002 check inter 2s fall 2 rise 1 backup # 故障时自动启用
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: plugin-daemon
spec:
serviceName: "plugin-daemon"
replicas: 3
selector:
matchLabels:
app: plugin-daemon
template:
metadata:
labels:
app: plugin-daemon
spec:
containers:
- name: daemon
image: langgenius/dify-plugin-daemon:0.1.3-local
env:
- name: STORAGE_PATH
value: "/app/storage/cwd"
volumeMounts:
- name: plugin-data
mountPath: /app/storage/cwd
volumeClaimTemplates:
- metadata:
name: plugin-data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "fast-ssd"
resources:
requests:
storage: 10Gi
initContainers:
- name: fix-permissions
image: busybox
command: ["sh", "-c", "chown -R 1000:1000 /app/storage/cwd"]
volumeMounts:
- name: plugin-data
mountPath: /app/storage/cwd
#!/bin/bash
PLUGINS=("langgenius/openai" "langgenius/weather")
for plugin in "${PLUGINS[@]}"; do
curl -X POST http://plugin-daemon:5002/internal/preload \
-H "Authorization: Bearer ${SERVER_KEY}" \
-d "plugin_identifier=${plugin}"
done
livenessProbe:
httpGet:
path: /health
port: 5002
initialDelaySeconds: 30
periodSeconds: 10
from tenacity import retry, stop_after_attempt, wait_exponential
@retry(stop=stop_after_attempt(3), wait=wait_exponential(multiplier=1, min=2, max=10))
def invoke_plugin(plugin_id, params):
response = requests.post(f"http://plugin-daemon:5002/invoke/{plugin_id}", json=params)
response.raise_for_status()
return response.json()
# prometheus.yml
scrape_configs:
- job_name: 'plugin-daemon'
static_configs:
- targets: ['plugin-daemon:5002']
metrics_path: '/metrics'
route:
receiver: 'slack-notify'
group_by: ['alertname', 'cluster']
receivers:
- name: 'slack-notify'
slack_configs:
- api_url: 'https://hooks.slack.com/services/XXX'
channel: '#ai-ops'
send_resolved: true
title: 'Plugin Daemon Alert: {{ .CommonAnnotations.summary }}'
通过本文方案，企业可将Plugin Daemon的可用性从99.9%提升至99.99%，每年减少近9小时的计划外停机。插件作为Dify生态的"四肢"，其稳定性直接决定AI应用的战斗力——而高可用的守护进程，正是这副"四肢"的坚实骨骼。
附录：常用排查命令
（完）
